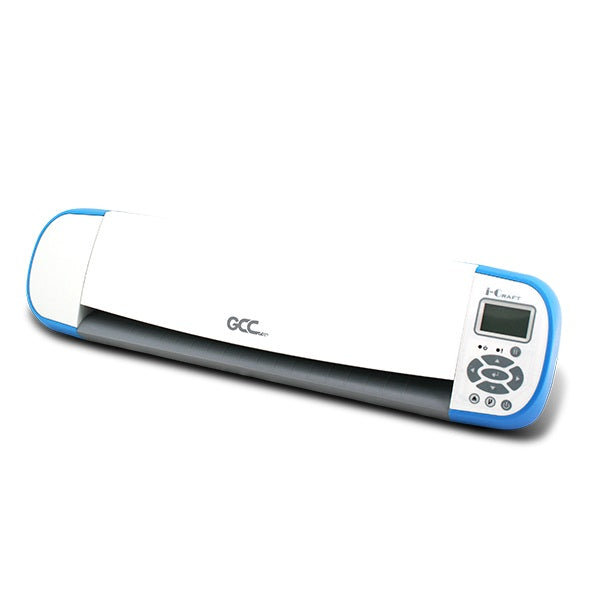

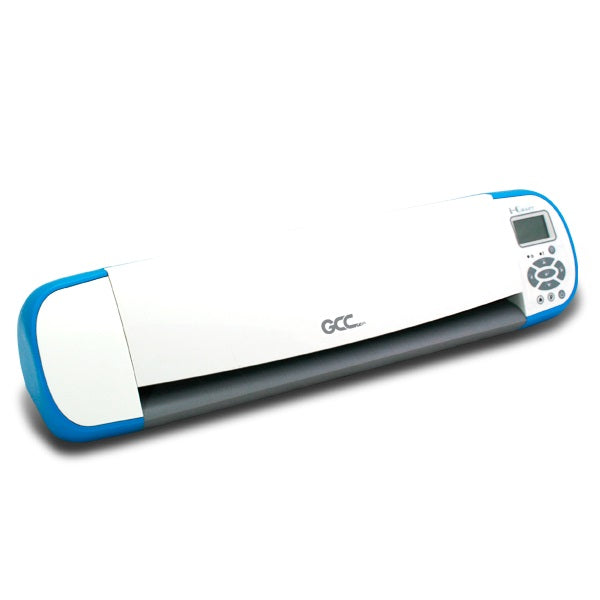

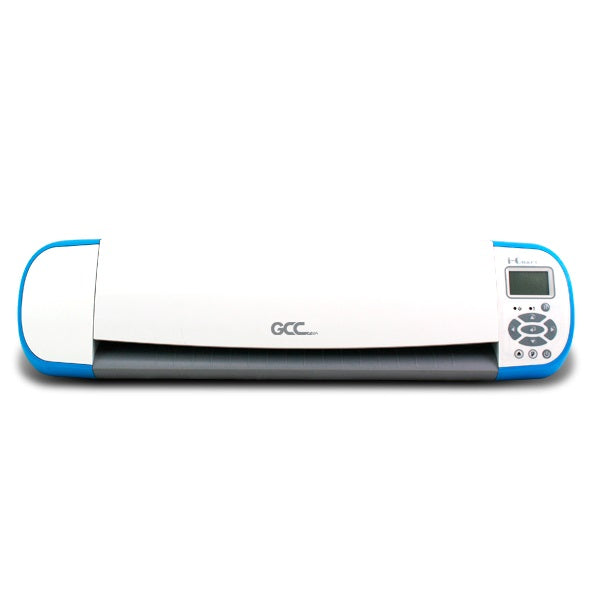

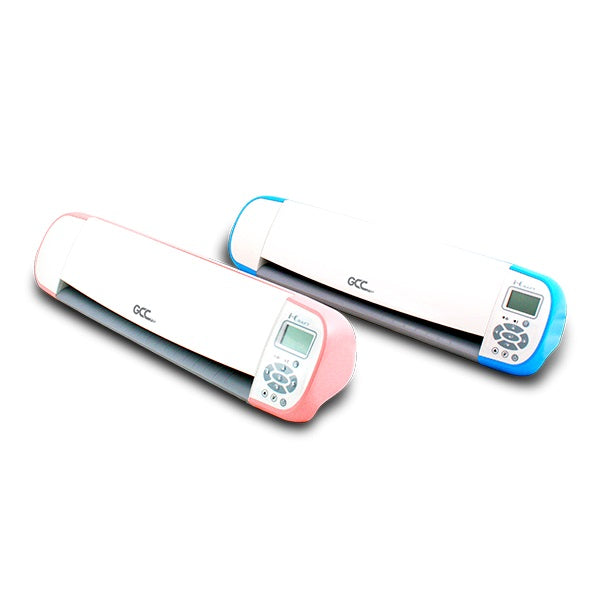

New GCC i-Craft 2.0 Desktop Vinyl Cutter Portable Cutting Plotter With Enhanced AAS II Contour Cutting System

New GCC i-Craft 2.0 Desktop Vinyl Cutter Portable Cutting Plotter With Enhanced AAS II Contour Cutting System

Specifications

• Operational Method Roller - Type
• Max. Cutting Width - 305 mm (12 in.)
• Max. Cutting Length - up to 1000 mm
• Max. Media Loading Width - 330 mm (13 in.)
• Number of Pinch Rollers - 2

• Acceptable Material Thickness - 0.8 mm (0.03 in.)

• Drive Motor - Stepper motor

• Max. Cutting Force - 5 ~ 350 g

• Max. Cutting Speed - 300 mm/sec (12ips)

• Offset - 0~1.0 mm (with an increase of 0.025 mm)

• Memory Buffer - 32 MB

• Interfaces - USB 2.0 (Full Speed), USB flash drive (FAT16 / FAT32)

• Type of Command - HP-GL, HP-GL/2

• Mechanical Resolution - 0.05 mm

• Software Resolution - 0.025 mm

• Distance Accuracy - ±0.254 mm or ±0.1% of move, whichever is greater

• Repeatability - ±0.1 mm

• Automatic-Aligning System - Completely Automatic Contour Cutting System for print to cut solution
• Test Cut - Yes

• Repeat and Copy - Yes

• Over Cut - Yes

• Control Panel - LCD panel

• Diameter of Blade - 2.5 mm

• Power Supply - AC adapter, 24V DC (1.67A)

• Power Consumption - Max. 40 W

Features

Enhanced AAS II Contour Cutting System

With AAS II contour cutting system, users can print graphics and use i-Craft™ 2.0 to cut the contour automatically for print and cut application in an easy way, including stickers, décor, cards and so on.

350 Grams of Cutting Force

The maximum of 350g cutting force extends the applicability of a i-Craft™ 2.0 to cut various materials, such as card stock paper, flock heat transfer, stencil, soft magnetic, and more.

USB Flash Drive Port

Users can create their designs wherever they want and save it to USB flash drive for later uses.
i-Craft™ 2.0 eliminates the limitation of creation.

Auto-Adjusted Blade Holder

Equipped with an auto-adjusted blade, i-Craft™ 2.0 can cut the designs perfectly without complicated blade adjustment procedure.

Adhesive Sheet

Adhesive sheet can be used to fix different materials from card stock to soft magnet. It provides a very common used cutting area, 12 x 12 inches, and a more extensive cutting area, 12 x 24 inches (optional item).

Diversified Tools

Various optional items available for i-Craft™ 2.0, such as advanced blade, engraving tip, color pen holder, creasing tool, and desktop media holder system to make more possibilities.

Large LCM Screen

The large LCM screen can show the selected function and make it easy to operate. Ease of use user interface turns every user to be a scrapbooking expert.

Intuitive AP Software and Driver

i-Craft™ 2.0 standard software is compatible with a diversity of file formats including SVG, PDF, AI, EPS, PLT, PNG, and WPC, providing the optimum compatibility. Better than that, GCC exclusive driver for i-Craft™ allows users to use familiar design software and print to i-Craft™ 2.0 via driver with ease, extending the compatibility and user friendliness.

Power Saving Mode

Enable power saving mode to turn off screen display automatically when i-Craft™ 2.0 not be operated for a period of time.

Rhinestone Application

Thanks to the superior cutting force and standard software function, i-Craft™2.0 handles rhinestone stencil cutting with ease, people are amazed with its great versatility.
