Product Information

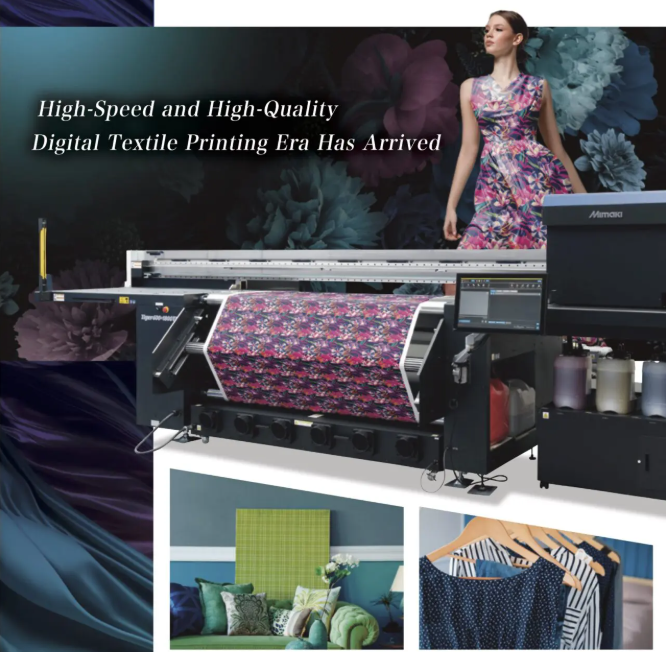

The Mimaki Tiger600-1800TS is a compact, industrial-grade dye sublimation printer engineered for mass production. Capable of printing speeds up to 5,920 sqft/hr (550 m²/h), this powerhouse utilizes eight staggered printheads and high-capacity 10kg ink tanks to deliver continuous, vibrant textile output for fashion, sportswear, and soft signage applications.
Maximum Throughput. Minimal Footprint.
Scale your textile operations without expanding your facility. The Tiger600-1800TS features a redesigned chassis that places both the paper feeding and take-up winding systems at the back of the machine. This intelligent configuration handles "Mini Jumbo" rolls up to 300 kg (661 lbs) while significantly reducing the installation space required compared to previous industrial models.
Speed is the priority. With a maximum output of 550 m²/h, this printer is built to handle tight deadlines and high-volume seasonal orders. The direct feed system ensures stable transport even for thin transfer papers, preventing cockling and media waste during high-speed runs.
Sustainable, Continuous Production
Meeting the demand for greener textile production, the Tiger600-1800TS utilizes MLSb510 Dye Sublimation Inks, which are both OEKO-TEX® and bluesign® approved. These certifications confirm that the inks meet strict environmental and safety standards, making your end products suitable for skin-contact applications like apparel and home textiles.
Efficiency extends to ink management. The machine is equipped with 10kg bulk ink tanks paired with a 2L buffer tank. This dual-tank system allows operators to replace empty ink containers while the printer is running, ensuring zero downtime during long shifts.
Advanced Stability Technologies
Reliability is engineered into every component.
-
Ink Degassing Module: Removes air bubbles from the ink path to prevent nozzle drop-outs and ensure consistent firing.
-
Wrinkle Removing Roller: A newly designed roller system relieves tension and keeps media flat, critical for maintaining image accuracy on lightweight transfer papers.
-
NRS (Nozzle Recovery System): Automatically substitutes clogged nozzles with working ones, allowing production to continue until maintenance can be performed.
Key Features
-
Industrial Speed: Prints up to 5,920 sqft/hr (550 m²/h) for mass production.
-
8-Head Configuration: Features 8 printheads in a staggered, inline setup for high-density coverage.
-
Jumbo Roll Support: Rear-mounted feeder accepts rolls up to 661 lbs (300 kg).
-
Uninterrupted Ink Supply: 10kg tanks with hot-swap capability via 2L buffer tanks.
-
Certified Safety: MLSb510 inks are OEKO-TEX® and bluesign® approved.
-
Stable Transport: Specialized rollers handle thin transfer papers without wrinkling.
Specifications
| Feature | Details |
| Printhead | 8 heads (2 stagger x 4 in-lined) |
| Print Resolution | 300 dpi, 600 dpi |
| Print Speed | Max: 5,920 ft²/h (550 m²/h) |
| Maximum Print Width | 72.8″ (1,850 mm) |
| Maximum Media Width | 74.8″ (1,900 mm) |
| Maximum Media Thickness | 5.0 mm or less |
| Maximum Media Weight | 661.4 lb or less (300 kg) |
| Ink Type | Sublimation Transfer MLSb510 (Bl, M, Y, K) |
| Ink Capacity | 10kg Ink Tank |
| Interface | Ethernet 10GBASE-T, USB 2.0 (Removable Disk) |
| Power Supply | 3-phase 380-514V ± 5%, 50/60 Hz, 25A or less |
| Power Consumption |
Operating: 15.0 kW or less Standby: 1.0 kW or less |
| Dimensions (W × D × H) |
209″ x 110″ x 75″ (5,300 mm x 2,800 mm x 1,900 mm) |
| Weight | 3,572 lb (1,620 kg) |
| Certifications | ETL (IEC62368-1), CE Marking (EMC, Low Voltage, Machinery), CB, RoHS, REACH, RCM, KC, UKCA |
|
 |
Why Choose the Tiger600-1800TS?
This printer bridges the gap between wide-format and single-pass textile machines. It offers the heavy-duty capacity required for industrial manufacturing—handling jumbo rolls and bulk ink—at a fraction of the footprint. Ideal for Canadian textile mills and high-volume print shops, it provides the stability needed to run overnight shifts with confidence.
