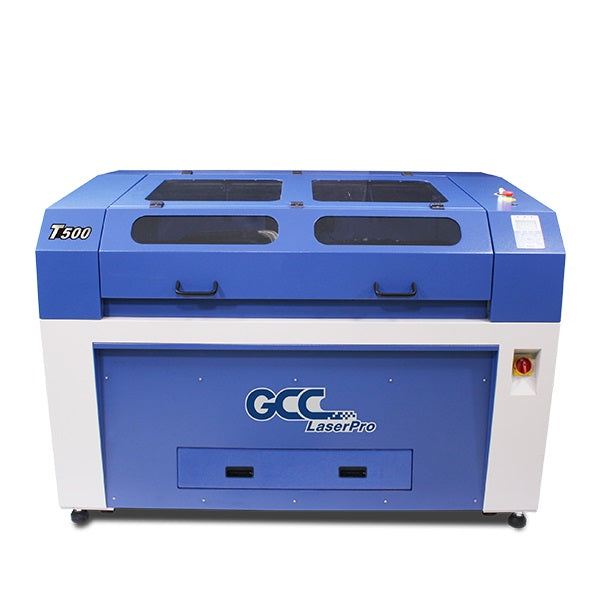

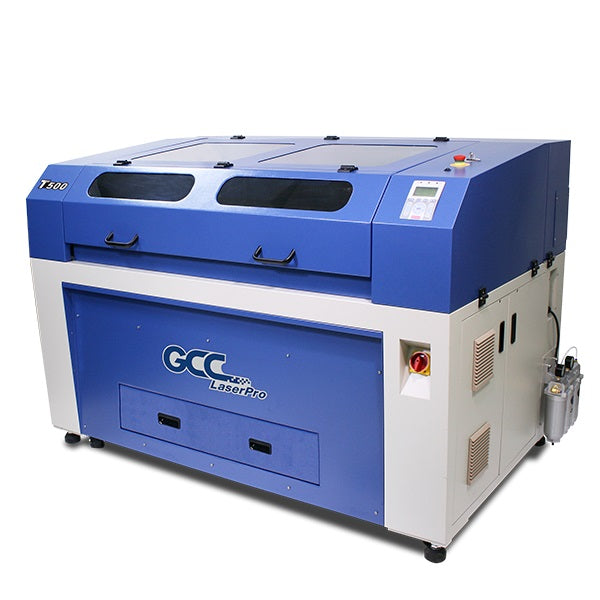

New GCC Laser Pro T500 60-200W CO2 Laser Cutter Machine With AC Servo Motor and Unique Motion

The T500 Laser Cutter is a dedicated design to fulfill your cutting and engraving needs with high throughput and superb quality. With a series of definable features, the T500 is the flexible and user-friendly laser cutter for your choice. Equipped powerful 200W laser allow user to deliver clear and fine cutting result. GCC LaserPro T500 Laser Cutter is capable of exceptional 3D engraving quality and cutting at high speed which make it a high ROI laser system on the market.

Specifications

• Laser Wattage - 60 W, 80 W, 100W, 150 W, 200 W
• Laser Source - Sealed CO2 Laser
• Cooling - Air-cooled, Water-cooled
• Work Area - 1300 x 905 mm (51 x 35 in.)
• Part Size (L x W x H)
  • w/o Cutting Table - 1346 x 916 x 127 mm (53 x 36 x 5 in.) with 2"/4" lens, 1346 x 916 x 76.2 mm (53 x 36 x 3 in.) with 6" lens
  • All Doors Open - 1346 x ∞ x 25 mm (53 x ∞ x 1 in.) with 2"/4" lens
  • With Cutting Table - 1325 x 889 x 114 mm (52 x 35 x 4.4 in.) with 2"/4" lens, 1325 x 889 x 38 mm (52 x 35 x 1.5 in.) with 6" lens
• Dimensions (W x D x H) - 1842 x 1427 x 1332 mm (72.5 x 56.2 x 52.4 in.)
• Weight - 420 Kg / 924 lb, 440 Kg / 968 lb
• Drive - AC servo Control
• Maximum Speed* - 40IPS
• Speed Control - Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job)
• Power Control - Adjustable from 0-100% (Up to 16 color-linked power settings per job)
• Engraving Capability - 256-level gray scale image processing capability
• Distance Accuracy - 0.254 mm or 0.1% of move, whichever is greater
• Z-Axis Movement - Manual
• Resolution (DPI) - Available125, 250, 300, 380, 500, 600,760,1000, 1500
• Interface - 10 Base-T Ethernet, USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system), USB Type-B 2.0  – For connecting with the computer
• Focus Lens - Standard 4" focal lens in enclosed lens carriage (Optional 2"/6" lens ), Standard 6" focal lens in enclosed lens carriage (Optional 2"/4" lens )
• Display PanelDisplay Panel - 4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus.
• Safety - Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance, Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
• Cutting Table - Knife-shaped cutting bars with alumminum grid cutting table

Features

RoHS Compliance

All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

AC Servo Motor and Unique Motion

High toque and high speed AC servo motor assures long motor lifetime and high precision. A light weight and high strength structure together with AC servo motor and steel cord belt to provide first class stability and accuracy.

Excellent Speedy Scribing Quality

T-500 embrace extraordinary control system and rigid motion system allow user to create top-notch vector scribing quality with high speed.

SmartPOINT Positioning Device (Patented)

Material positioning made extremely easy by use of 4 red beam diodes. Simply aim each red beam diodes at distinct points on the material and the red beam becomes a very useful positioning tool to replicate previous jobs precisely.

Outstanding Cutting Capability

T500 delivers high cutting quality with LaserPro's unique laser firing control technology. Up to 200W output power options, GCC LaserPro T500 can cut through 1" (25 mm) acrylic in a single pass with a smooth finish and unmatched clear cutting edge.

Superior Engraving Quality

T500 persists with GCC LaserPro's excellent engraving capability. Having cutting and engraving capability in one product, no more time wasted on switching materials from cutting and engraving machine. Compare to conventional cutting product. It is difficult to have a good and consistent raster performance with large working area, but T500 can.

Knife-shaped Cutting Table

Unique cutting table with tipped bars that can be easily adjusted without tools to create different levels of working depths. The cutting table of T500 reduces laser reflections and delivers clear cutting edge.

LED Light Illumination System

A LED light module that illuminates the working space and makes every engraving detail easy to see.

Grid Cutting Table

The grid cutting table is an ideal pal for laser cutting. It lifts the work piece off the work table from hitting by laser reflection while supports it with reinforced grid design. The dust and vapor created during laser cutting are then taken away effectively through the grid by down vacuum exhaust (suggested using SmartBOX™ together). Rather than handling rigid materials, grid cutting table also helps to fix flexible materials with the aid of down vacuum SmartBOX™ to keep constant focus distance and consistent cutting result. A clean and better cutting quality is achieved from this technique.

Built-In Networking Connection

Network connection enables multiple laser engravers to be operated by one PC and multiple PCs to share a single unit of laser engraver. The Ethernet port has made data transmission easier and faster for GCC LaserPro users using network connection. Free your designers with great flexibility and maximum machine versatility.

Bridge Cutting

Bridge Cutting function diversifies the laser cutting into packaging prototyping and fulfill versatile requirements. Define the cutting gap to create the dashed line effect from user friendly print driver interface.
