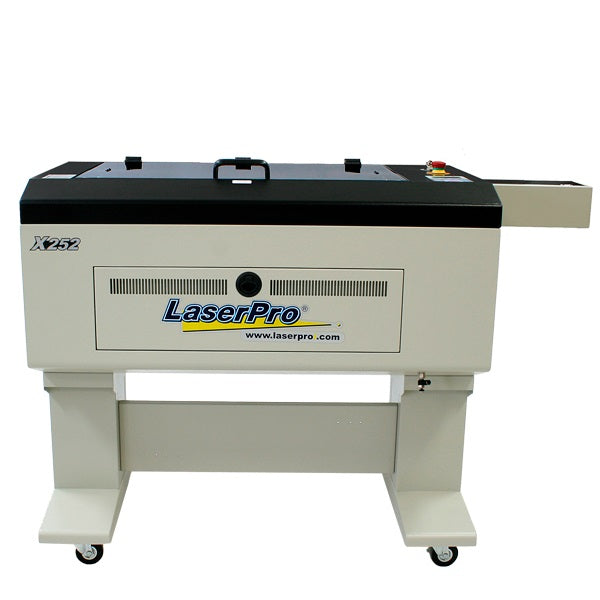

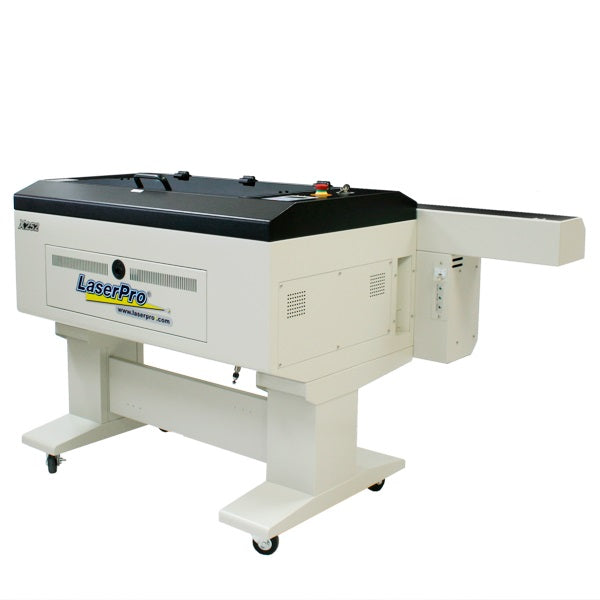

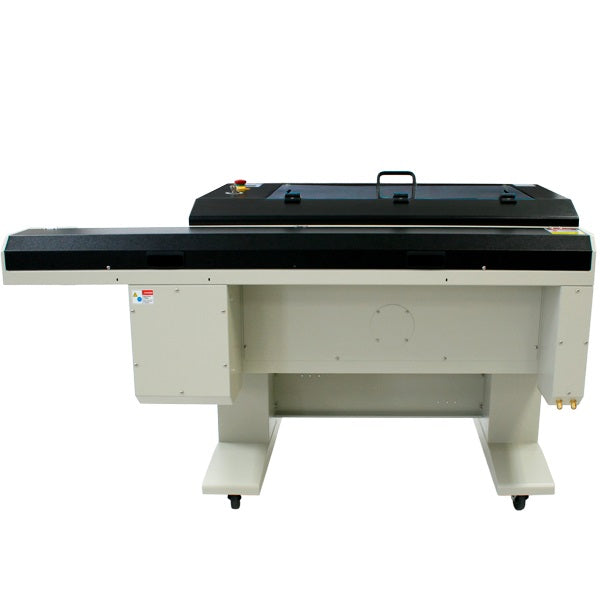

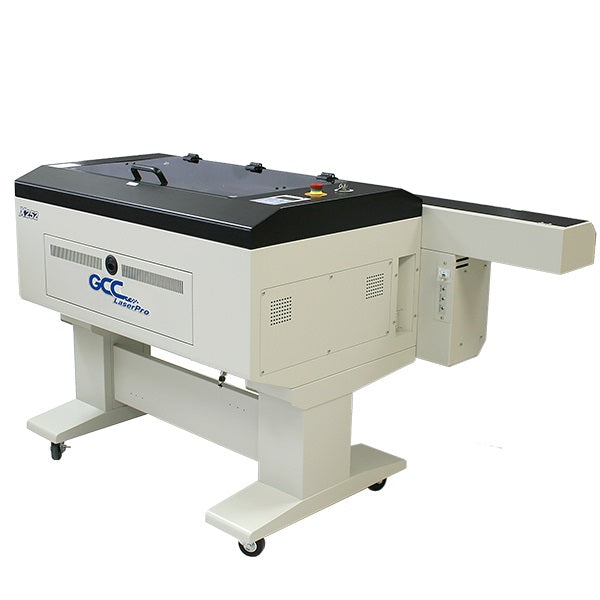

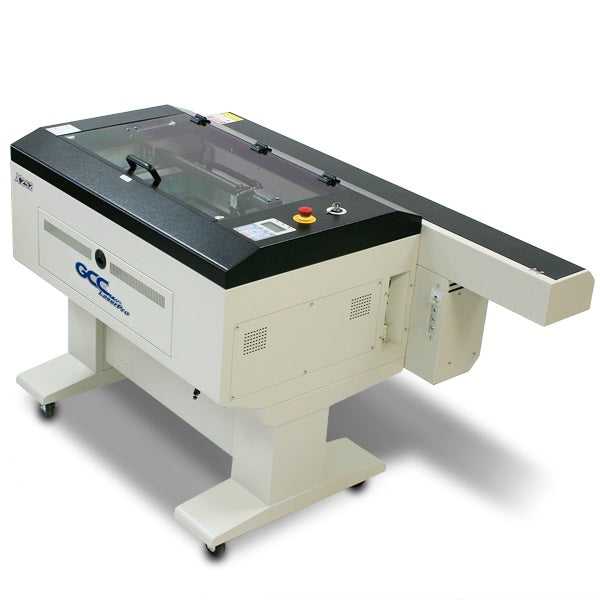

New GCC Laser Pro X252 80-100W CO2 Laser Cutter Machine With Easy-to-use Control Panel
The LaserPro X series offers an economical alternative for laser cutting and engraving. The LaserPro X series is equipped with a dependable sealed CO2 laser which offers a reliable source of 80W and 100W of power for mass production requirements.
Specifications
- Laser Source - 80W / 100W, Sealed CO2 Laser
- Laser Cooling - Water Cooled
- Working Area - 635 x 458 mm (25 in. x18 in.)
- Part Size (L x W x H)
- All doors closed - 685 x 482 x 165 mm (27 x 19 x 6.5 in.)
- All doors open - 685 x ∞ x 165 mm (27 x ∞ x 6.5 in.)
- Table Size - 790 x 530 mm (31.1 x 20.9 in.)
- Dimensions - 1650 x 930 x 1040 mm (64.9 x 36.6 x 40.9 in.)
- Driving Motor - Closed-loop DC servo control
- Maximum Motor Speed - 40 IPS
- Speed Control - Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job)
- Power Control - Adjustable from 0~100% (Up to 16 color-linked power settings per job)
- Engraving Capability -256-level gray scale image processing capability
- Distance Accuracy - 0.254 mm or 0.1% of move, whichever is greater
- Resolution (DPI) - Available 125, 250, 500, 1000
- Z-Axis Movement - Automatic
- Focus Lens - Standard 2.0", Optional 1.5", 3"
- Interface - 10 Base-T Ethernet, USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system), USB Type-B 2.0 – For connecting with the computer
- Compatible Operating Systems - MS Windows
- Safety - Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance, Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
Features
Easy-to-use Control Panel
A control panel with coherent hot-key design and graphic icon displays that allows you to directly change the laser parameter setting, set jobs to repeat unlimited times, queue job, delete jobs, and more.
Programmable Origin
Designed for simplifying complex tasks, the LaserPro X252 user-friendly interface is a great facilitator to provide powerful function settings.
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.
Motion System with DC Servo Motor
The LaserPro X252 utilizes a high speed closed-loop DC servo motor for precise and fast carriage movement to ensure exceptionally accurate cutting outputs.
AutoFocus (Patented)
Patented Autofocus Gauge adjusts the laser engraver to the precise focal point on the engraving area automatically. The Autofocus is the most effective lens-focusing tool that prevents human error when exact measurement of distance from the surface of the working material is needed.
Emergency Stop
Big red button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operational environment.
