New GCC Laser Pro X380 80-100W CO2 Laser Cutter Machine With Easy-to-use Control Panel

Please Contact Us To Order 905-326-2790 or email: info (at) precisiontoner.com

CONTACT FOR DETAILS »

Product Information

New GCC Laser Pro X380 80-100W CO2 Laser Cutter Machine With Easy-to-use Control Panel

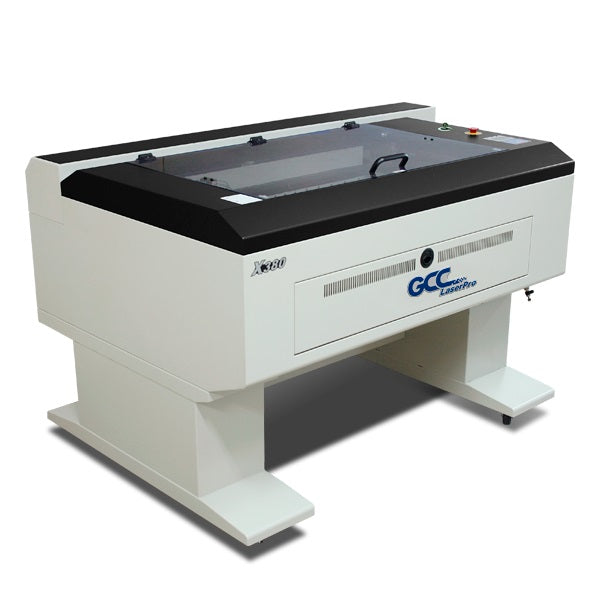

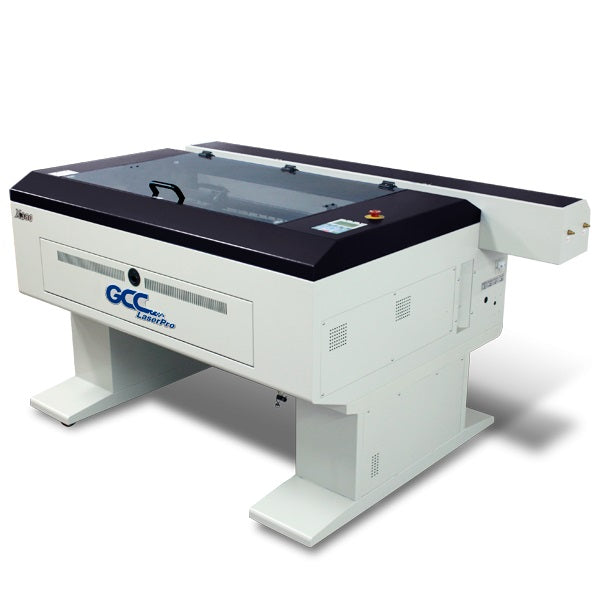

The GCC LaserPro X380 laser cutter is equipped with a dependable sealed CO2 laser which offers a reliable source of laser power for mass production requirements. The GCC LaserPro X series offers an economical alternative for laser cutting and engraving, which provides users an edge over others with numerous uniquely innovative and user-friendly features.

Specifications

  • Laser Source - 80W / 100W, Sealed CO2 Laser
  • Laser Cooling - Water Cool
  • Working Area - 960 x 610 mm (38 x 24 in. )
  • Part Size (L x W x H)
    • All doors closed - 1041 x 635 x 165 mm (41 x 25 x 6.5 in. )
    • All doors open - 1041 x ∞ x 165 mm (41 x ∞ x 6.5 in. )
  • Table Size - 1085 x 750 mm (42.7 x 29.5 in. )
  • Dimensions - 1800 x 1092 x 1017 mm (70.8 x 42.9 x 40 in.)
  • Driving Motor - Closed-loop DC servo control
  • Maximum Motor Speed - 40 IPS
  • Speed Control - Adjustable from 0.1~100% ( Up to 16 color-linked speed settings per job )
  • Power Control - Adjustable from 0~100% ( Up to 16 color-linked power settings per job )
  • Engraving Capability - 256-level gray scale image processing capability
  • Distance Accuracy - 0.254 mm or 0.1% of move, whichever is greater
  • Resolution (DPI) - Available125, 250 , 500, 1000
  • Z-Axis Movement - Automatic
  • Focus Lens - Standard 2.0", Optional 1.5", 3"
  • Interface - 10 Base-T Ethernet, USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system), USB Type-B 2.0  – For connecting with the computer
  • Display Panel - 4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus
  • Safety - Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance, Class 4 Laser Product Compliant with CDRH with the optional pass-through door module

Features

Easy-to-use Control PanelEasy-to-use Control Panel

Designed for simplifying complex tasks, the GCC LaserPro X380's user-friendly interface is a great facilitator to provide powerful function settings.

Programmable OriginProgrammable Origin

Easy-to-use position modes allow the operator an effortless way to setup a job with Drag-N- Engrave. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.


RoHS ComplianceRoHS Compliance

All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.


Rigid and Reliable ConstructionRigid and Reliable Construction

Solid machine structure ensures superior output quality and motion stability for superb performance.


Motion System with DC Servo Motor

Motion System with DC Servo Motor

The GCC LaserPro X380 utilizes a high speed closed-loop DC servo motor for precise and fast carriage movement to ensure exceptionally accurate cutting outputs.



Superb Cutting QualitySuperb Cutting Quality

As a transcendent professional laser cutting system, the GCC LaserPro X380 is capable of various cutting applications and able to yield excellent cutting edges.
