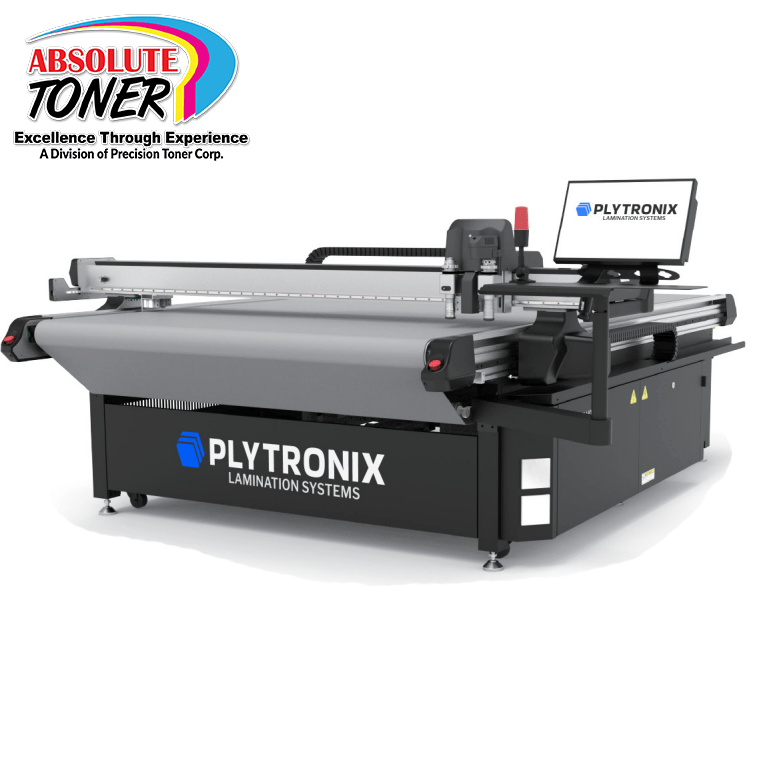

Plytronix AT-2540 8' x 13' High-Precision Digital Flatbed Cutting Machine with Automated Finishing System Utilizes Interchangeable Tool Heads

The Plytronix AT-2540 is a high-precision digital flatbed cutter designed for the versatility demanded by Canadian sign shops, packaging converters, and decor specialists. With a 8' x 13' working area, this automated finishing system utilizes interchangeable tool heads to cut, kiss-cut, crease, score, and route materials ranging from vinyl and security film to rigid acrylic and thick foam board.

The Ultimate Finishing Solution for Signage and Decor

Finish jobs faster. The Plytronix AT-2540 replaces manual cutting with digital precision. Whether you are producing short-run packaging, intricate wedding decor, or industrial gaskets, this machine adapts to your workflow.

It is engineered for flexibility. The machine handles an extensive range of rigid and flexible materials, making it a profit centre for diverse industries. From cutting intricate vinyl decals for custom dance floors to routing rigid backdrops for event styling, the AT-2540 delivers clean, polished edges every time.

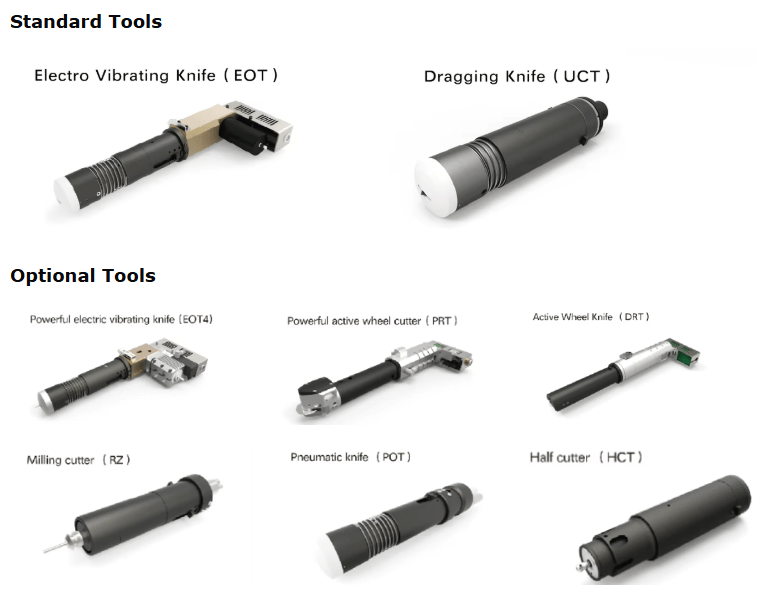

Multi-Tool Versatility: Cut, Route, Crease

The core strength of the Plytronix AT-2540 is its ability to switch tasks instantly. It is not just a cutter; it is a complete finishing system.

• Oscillating Knife: Slices through soft, thick materials like foam core and corrugated plastic without crushing the edges.

• Router Tool: Handles hard substrates. Perfect for cutting and engraving acrylic, thick plastics, and ACM (Aluminum Composite Material).

• Creasing Wheel: Applies precise pressure to cardstock and corrugated board, creating fold lines for box making and packaging prototypes.

• Kiss-Cut Tool: expertly cuts the top layer of vinyl without penetrating the backing liner, essential for sticker and label production.

• V-Cut Tool: Creates beveled edges and 45-degree cuts for constructing 3D structural displays and honeycomb boards.

Advanced Automation and Optical Registration

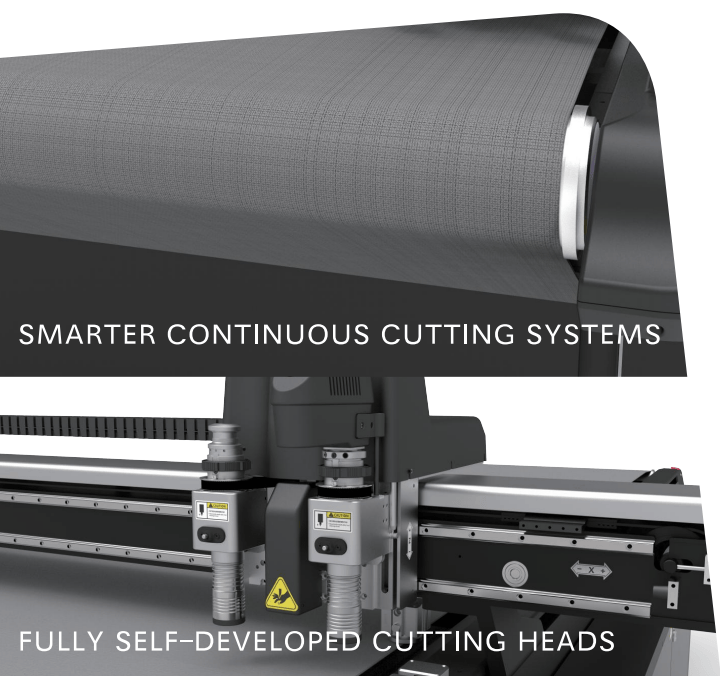

Speed up production. The AT-2540 features an automatic conveyor system that feeds material directly onto the cutting bed, allowing for continuous operation on rolled media like textiles or large vinyl runs.

Precision is automatic. The integrated camera system reads registration marks on printed graphics, compensating for any skew or distortion. This ensures that your cut lines line up perfectly with your print, which is critical for print-and-cut workflows involving contour-cut signage or labels.

Material Capabilities

The Plytronix AT-2540 is designed to process a massive library of materials.

Rigid Board Materials

Ideal for signage, POP displays, and event backdrops.

• PVC Foam Board and Sintra

• Gatorboard and Gatorfoam

• Corrugated Plastic (Coroplast)

• Honeycomb Board

• Cardboard, Chipboard, and Greyboard

Flexible and Roll Materials

Perfect for automotive, apparel, and adhesive applications.

• Security Film & PPF: Precisely cut Paint Protection Film and automotive security films with exact measurements.

• Vinyl and Self-Adhesive Vinyl

• Textile, Fabric, and Felt

• Leather (Natural and Synthetic)

• Rubber Sheets and Gaskets

Plastics and Synthetics

• Acrylic (Thin sheets via routing)

• PET and PETG

• Polycarbonate and ABS

• Styrene

Foam and Insulation

Achieve clean, vertical edges without tapering.

• EVA Foam

• PE and PU Foam

• XPS Insulation Foam

• Acoustic Foam

Key Features

• Massive Work Area: ~8' x 13' (2500mm x 4000mm) bed accommodates standard 8x13 sheets easily.

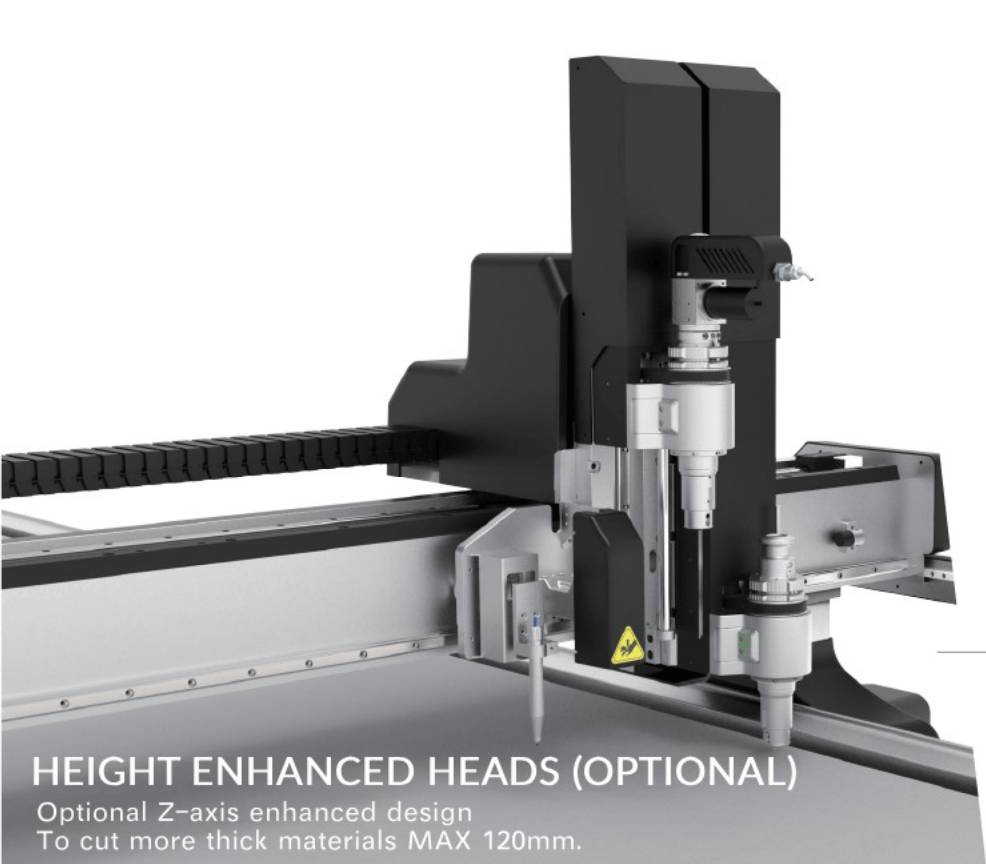

• Interchangeable Tool Heads: Quickly swap between knives, routers, and creasing wheels to suit the job.

• Conveyor System: Enables continuous feeding for long runs of rolled material.

• CCD Camera Registration: Automatically detects crop marks for precise contour cutting of printed graphics.

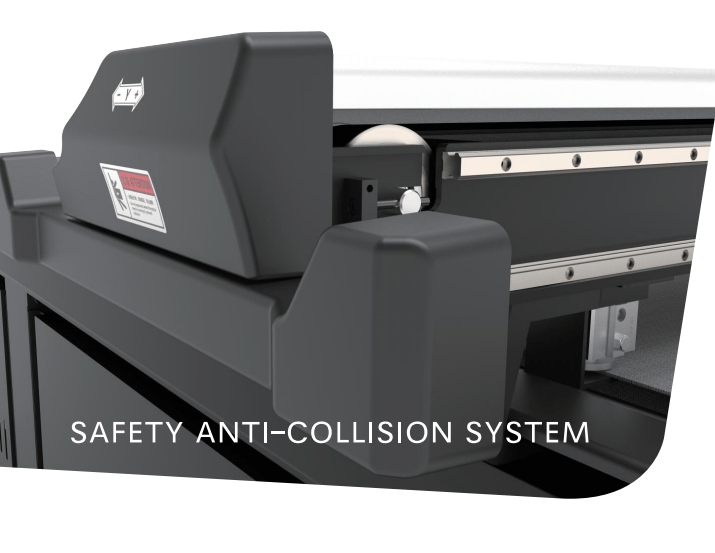

• Safety System: Equipped with sensitive anti-collision sensors to protect operators and the machine.

• Specialized Cutting: Capable of box making, perforation, scoring, and intricate shape cutting.

See the Plytronix AT-2540 in Action

Specifications

• Model: Plytronix AT-2540

• Work Area: ~8' x 13' (2500mm x 4000mm)

• Rated Power: 15 kW

• Interface: Ethernet

• Command Set: HPGL compatible

• Voltage: 220V / 380V ±10%



Why Choose the Plytronix AT-2540?

This flatbed cutter is the workhorse your shop needs to expand into high-margin markets like custom packaging, wedding decor, and vehicle protection (PPF). It offers the heavy-duty construction required for industrial performance with the finesse needed for delicate vinyl work. Ships from our warehouse to locations across Canada.

Stop turning away complex finishing jobs. Bring them in-house with Plytronix.
