AVAILABLE FOR PRE-ORDER NOW!

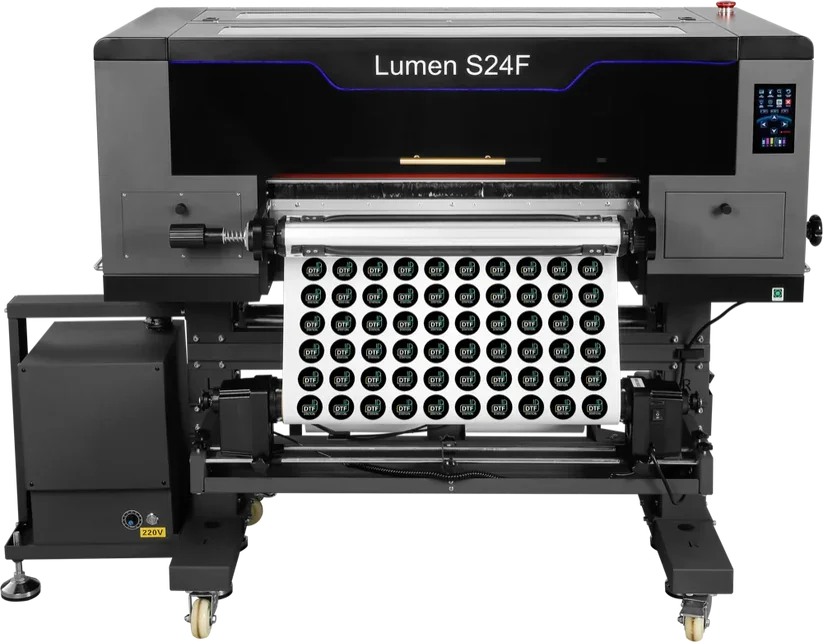

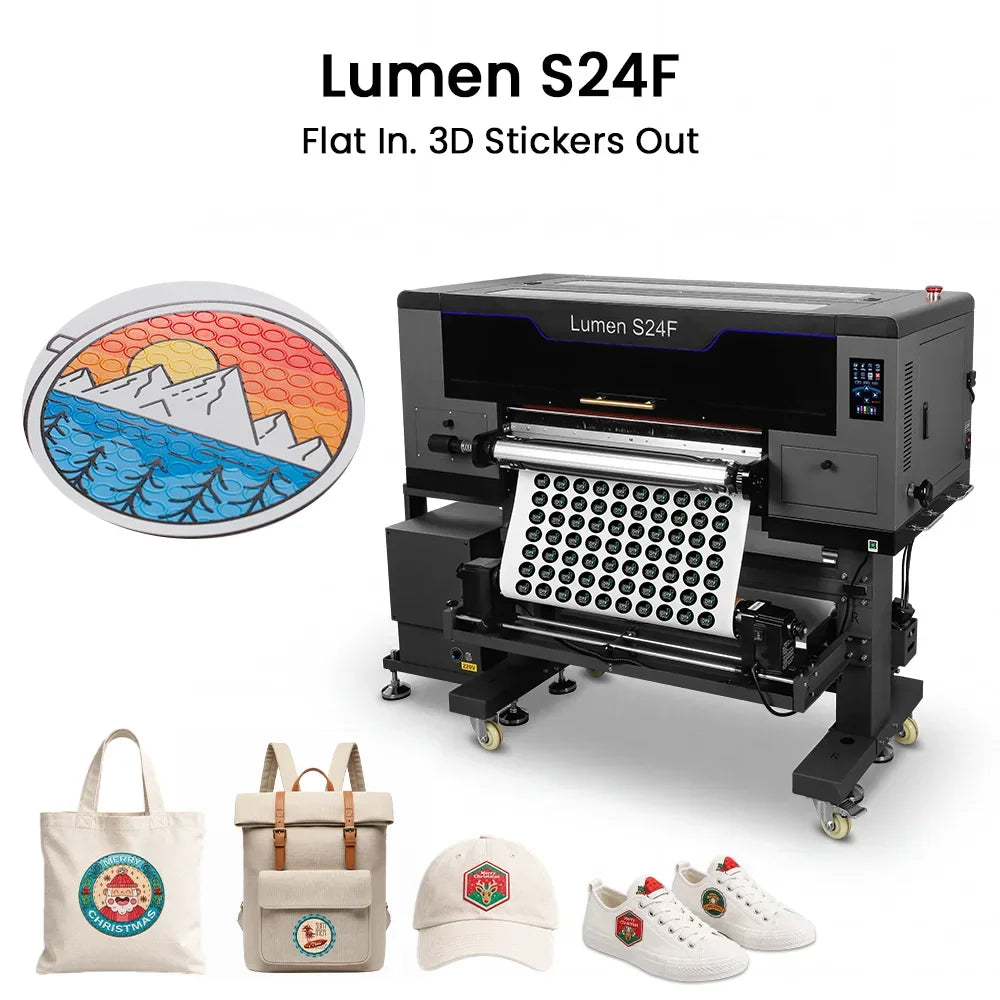

DTF Station Lumen S24F UV DTF Printer - 24" 3D Embossed UV Transfer Printer

The DTF Station Lumen S24F is a 24-inch UV DTF printer engineered specifically for 3D embossed, flexible transfers. It produces raised patches with gloss varnish effects for structured headwear, heavy canvas bags, and leather goods. This system eliminates cracking on soft substrates, giving commercial decorators exact control over premium merchandise production.

Commercial Print Applications & Flexible UV Ink

High-margin apparel requires specialty finishing. The Lumen S24F creates deep, textured transfers that bend with soft materials instead of fracturing under stress. Standard UV inks cure rigid and snap on fabric. This specific ink formulation remains flexible, allowing decorators to press durable raised patches onto structured hats, tote bags, and accessories without losing mechanical integrity.

Operators can expand their promotional goods catalogue without outsourcing. You can press these dimensional transfers directly onto leather or synthetic outerwear using our commercial heat press machines and finishing equipment configured for exact pressure distribution. The built-in AI layering engine automatically generates 31 distinct relief and faux-stitch styles, replicating dense embroidery effects without requiring a single thread.

Hardware Architecture & Printhead Configuration

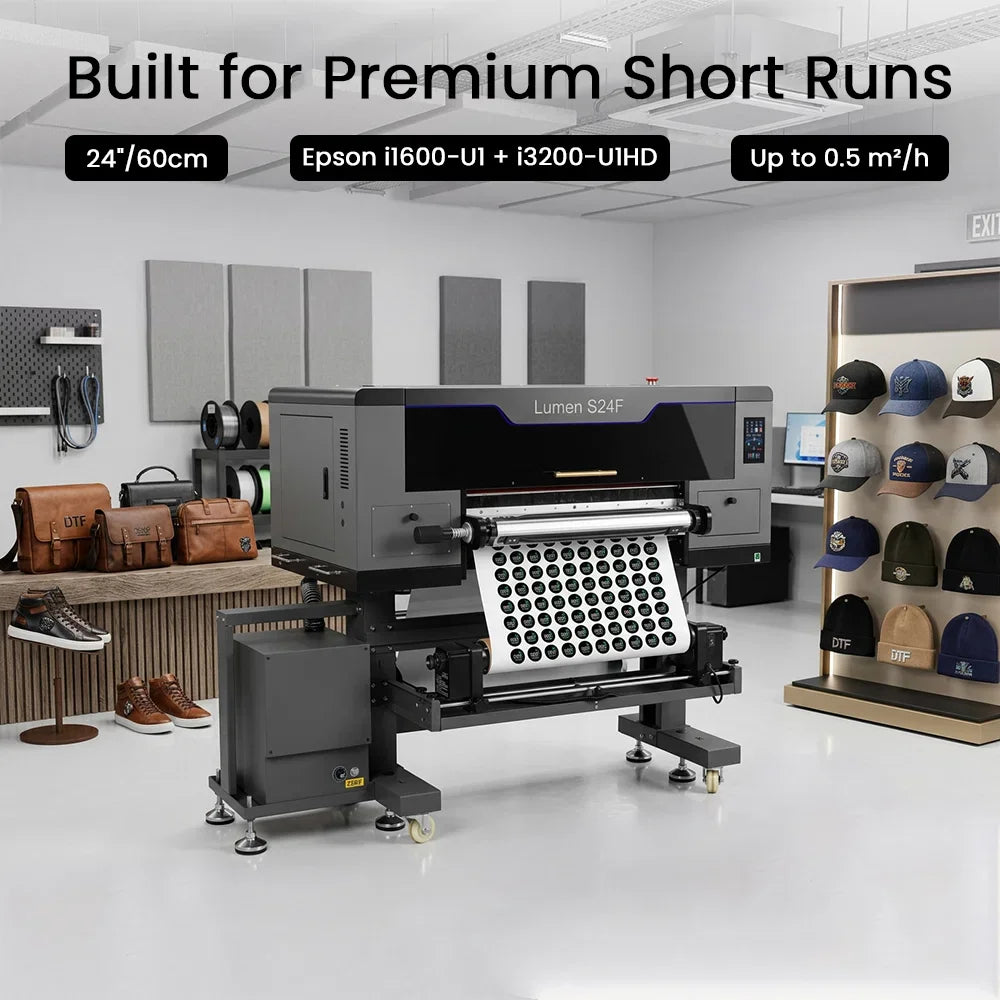

Production reliability dictates shop efficiency. The machine integrates a dual printhead system, pairing an Epson i1600-U1 with an Epson i3200-U1HD to isolate white and colour channels from the varnish pass. This mechanical separation prevents nozzle cross-contamination while maintaining a 720 by 1200 dpi resolution output. You can review the exact piezoelectric droplet tolerances on the official Epson i3200 printhead specification documents.

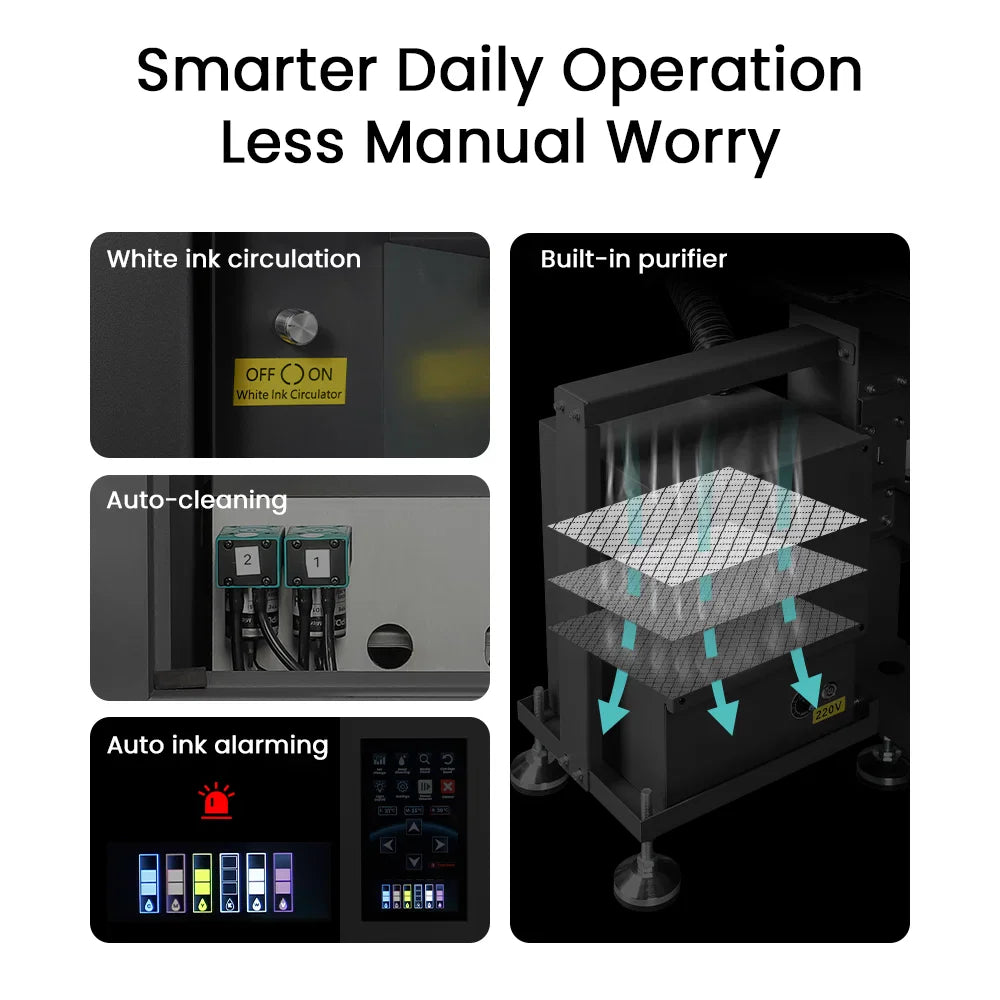

White ink circulation prevents pigment settling in the lines. The hardware manages its own maintenance cycles through automated head cleaning, reducing manual downtime between daily runs. A built-in 200-watt fume purifier extracts curing odours directly at the source, allowing the chassis to operate safely on an open shop floor without external ventilation ducting.

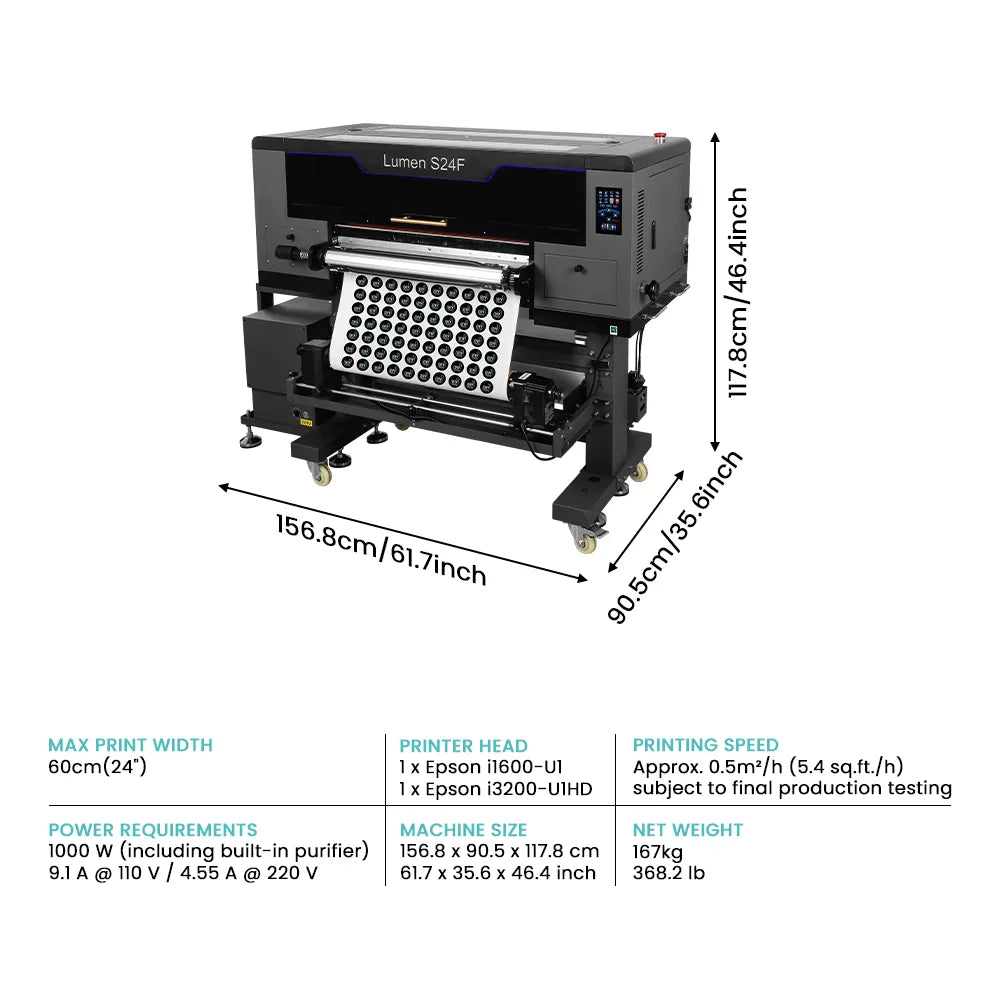

Technical Specifications & Printing Capabilities

Software Integration & Canadian Logistics

Digital workflow controls factory output. The system includes Image Presto for automated 3D spot-channel preparation, alongside the neoStampa RIP and DTF Station Pilot interface. The single integrated touchscreen lets operators manage job queues and monitor built-in head-strike sensors directly at the machine.

Core System Inclusions & Operational Features:

• Image Presto software for AI-assisted dimensional layering and spot-channel generation.

• neoStampa RIP software included for exact colour management.

• Built-in fume purifier and internal static control systems.

• Integrated head-strike, film, and cover safety sensors to prevent media crashes.

Absolute Toner ships industrial print hardware rapidly across the Greater Toronto Area and nationwide. We manage heavy freight dispatch to Toronto, Mississauga, Brampton, Vaughan, and secure cross-Canada logistics. Commercial facilities can access flexible B2B lease-to-own financing programs to protect operating capital while upgrading their production floor.
