Yinstar UV2513 Flatbed Printer – Ricoh Gen6 Commercial UV Press

The Yinstar UV2513 is a heavy-duty 4x8'(2.5m x 1.3m) flatbed printer designed for industrial-grade rigid printing. Powered by four Ricoh Gen6 printheads and a magnetic levitation motion system, it delivers high-speed, precision output on substrates like acrylic, metal, and wood. This machine features white ink circulation, 5-zone vacuum control, and advanced anti-collision safety for continuous Canadian production environments.

Industrial Precision with Ricoh Gen6

Built for shops that cannot compromise on detail. The Yinstar UV2513 comes standard with four original Ricoh Gen6 printheads, renowned for their durability and droplet precision. The system supports a flexible configuration of CMYK, White, and Varnish, allowing you to create high-value applications with spot gloss and textured relief.

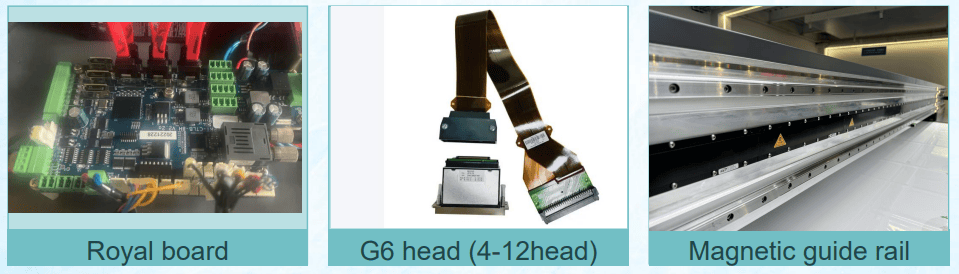

Reliability starts with the motherboard. This printer utilizes the Shanghai Royal board, specifically designated by Ricoh for optimal communication and firing stability. To ensure consistent colour density in fluctuating Canadian temperatures, the machine features a dual-stage ink constant temperature system, heating both the printhead internally and the secondary ink cartridges.

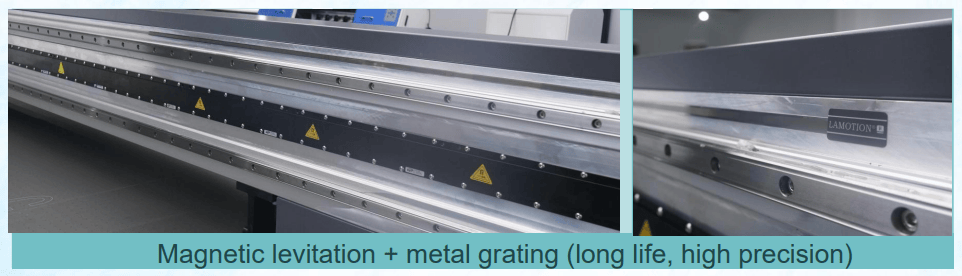

Magnetic Levitation Motion System

Stability equals sharpness. Unlike traditional belt-driven units, the UV2513 employs a magnetic levitation metal grating system. This contact-free technology eliminates friction, ensuring high-speed carriage movement with zero vibration. It is reinforced by double Hiwin grinding screws, double guide rails, and dual motors, providing the mechanical rigidity needed for a machine with a 2000 kg gross weight.

Intelligent Workflow and Safety

Minimize waste and downtime with smart automation.

• Resume Function: The "Continue Printing" feature allows operators to pause and resume jobs seamlessly, saving materials if an interruption occurs.

• Auto-Height Detection: The system automatically measures media thickness up to 100mm, adjusting the carriage height for the perfect firing distance.

• Triple Safety Protection: The carriage is equipped with a 360-degree anti-collision system, plus automatic two-way sensors and mechanical stops on both sides to prevent head damage from obstacles.

• Static Elimination: An integrated plasma pulse anti-static system neutralizes surface static, preventing ink overspray on sensitive substrates.

Robust Build and Curing

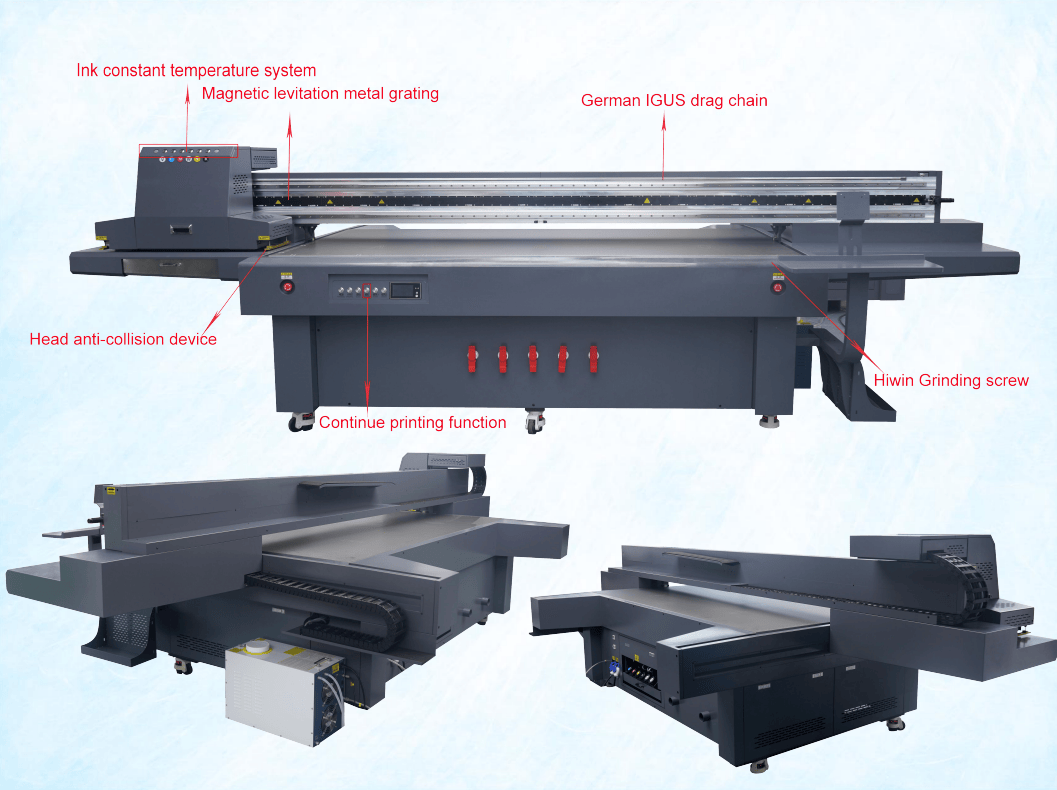

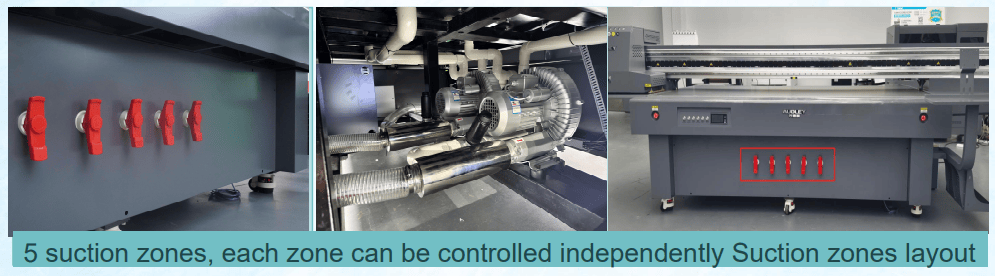

The chassis is anchored by a 250mm aviation aluminum beam and protected by German IGUS drag chains for long-term cable management. For curing, the unit uses energy-efficient UV LED lamps with imported Korean Seoul beads, ensuring instant drying and extended lamp life. The bed features a 5-zone independent suction system, allowing you to isolate vacuum power exactly where your material sits.

Key Features

• Premium Printheads: Equipped with 4 Ricoh Gen6 heads (Expandable to 12) for superior resolution.

• Magnetic Motion: Mag-lev metal grating and double Hiwin screws ensure friction-free accuracy.

• White Ink Management: Circulation and stirring system prevents precipitation and clogging.

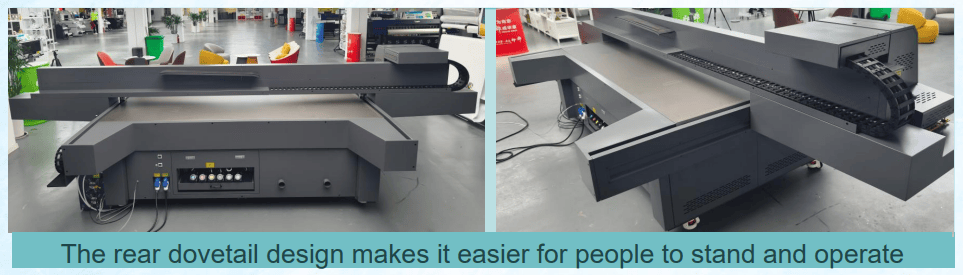

• User-Centric Design: Features a rear dovetail design for easier operator access and an ink volume display monitoring system.

• Software: Includes Photoprint RIP software for professional colour management.

Specifications

• Model: Yinstar UV2513

• Printheads: 4 x Ricoh Gen6 (CMYK + W + V)

• Print Area: 2500 mm x 1300 mm ($98.4" \times 51.1"$)

• Max Print Height: 100 mm

• Max Speed: 28 m²/h (Draft) | 21 m²/h (Standard)

• Curing System: UV Solidified Water Cycle LED

• Dimensions: 440 cm x 220 cm x 170 cm

• Weight: 2000 KG

Why Choose the Yinstar UV2513?

This is not an entry-level modify; it is a dedicated production workhorse. With its magnetic drive system and heavy iron frame, the Yinstar UV2513 offers the stability of machines double its price. It ships ready for heavy lifting in sign shops and manufacturing floors across Canada.

Upgrade your capabilities today. For specific questions on substrate compatibility or installation requirements, contact our technical team.
